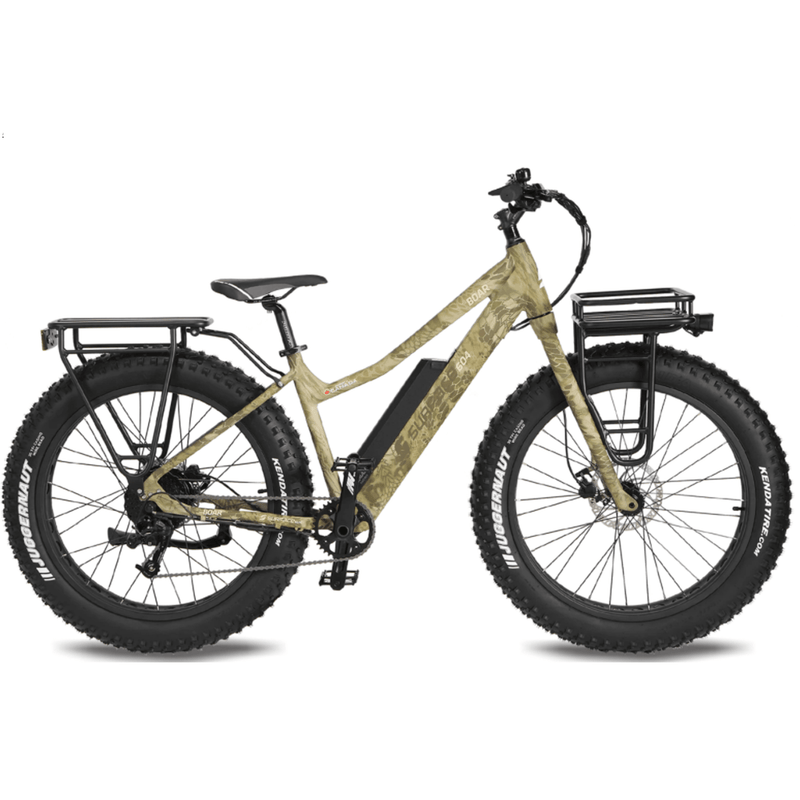

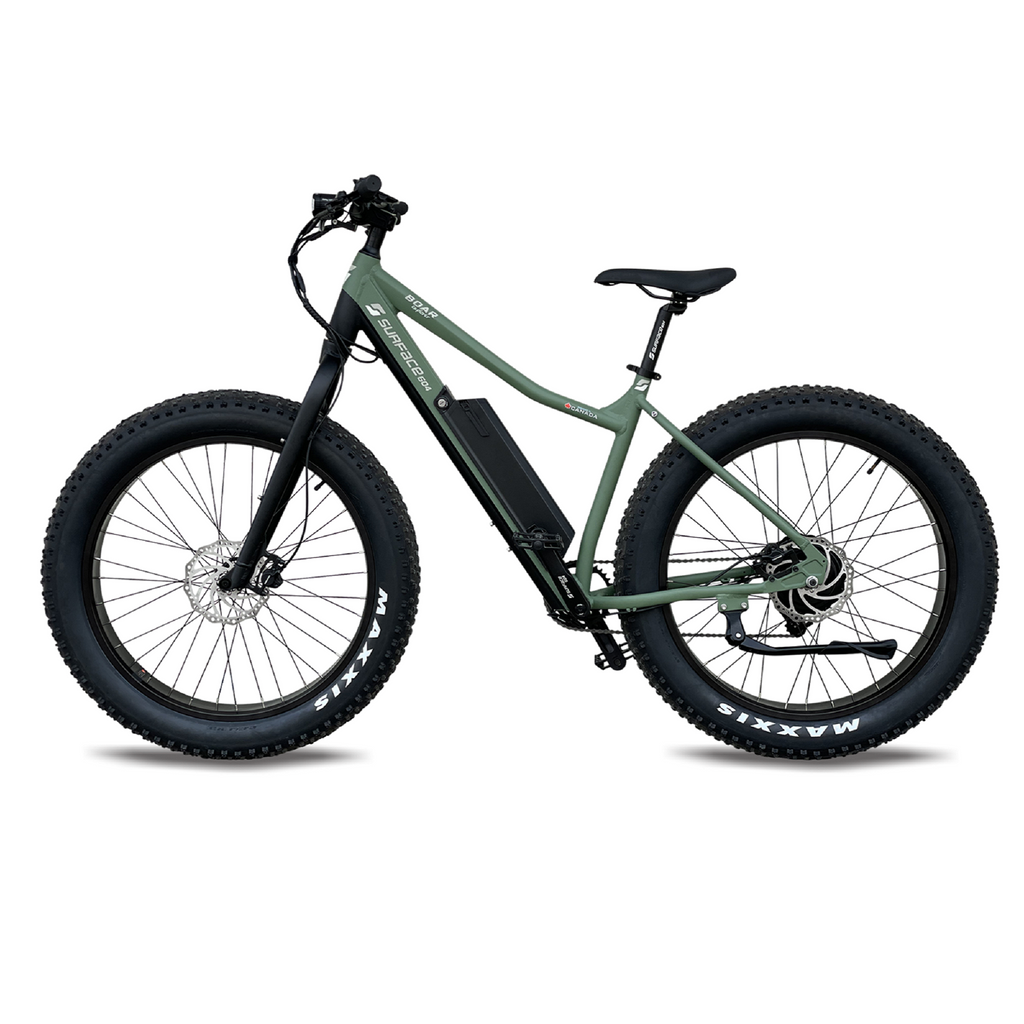

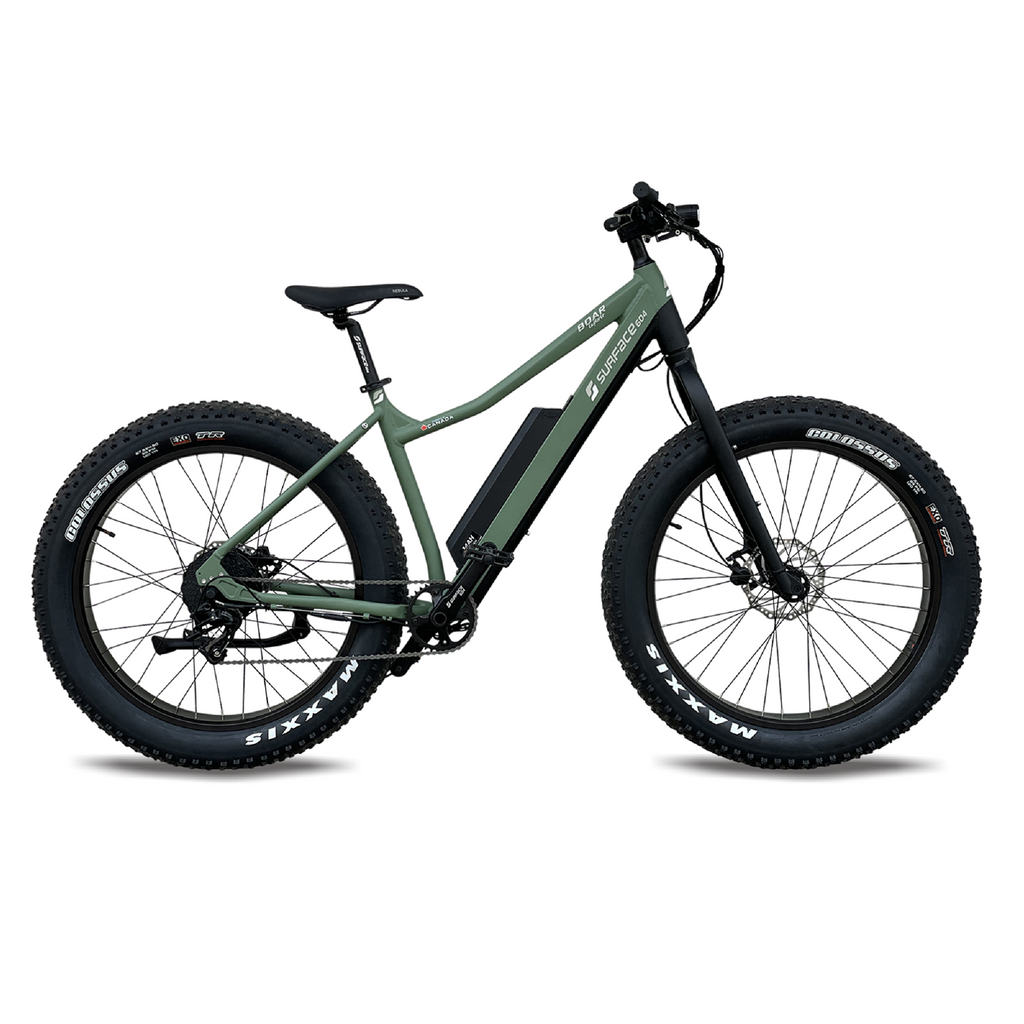

Surface 604 500W Boar Explorer Electric Bike

Surface 604SKU: EB-EXPLORER-GRN-20AH


FREE SHIPPING to Continental US

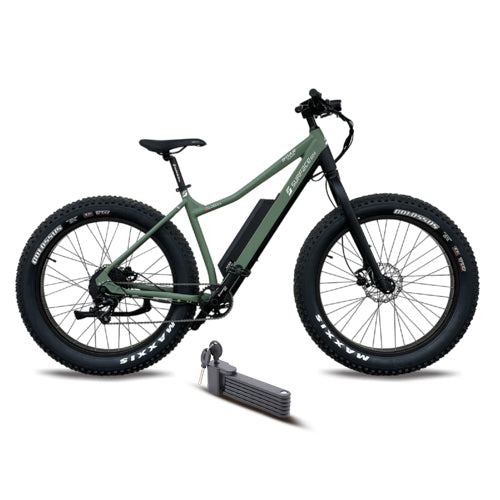

FREE Poplock bicycle lock ($84.95 value)

Battery: 48V/20AH
Price:
Sale price$2,999.99

Motor Size:

500W Bafang

Battery:

48V Samsung Lithium Ion

Drive Mode:

Class II: Thumb Throttle Pedal Assist

Frame Type:

6061 Aluminum Alloy

Wheel Size:

27.5"

Motor Position:

Rear Hub

Financing Available

Pay in 4 interest-free payments.

Free Shipping

Enjoy free shipping to the continental US.

We're Here To Help

Lifetime customer & technical support

Premium Warranty

Every bike comes backed by a warranty against manufacturing defects


The Surface 604 Boar Explorer electric bike is a highly intelligent electric bike made to deliver A-class performance on almost any type of terrain. It comes with a smart LCD which gives all minute details about your bike. You can even set a passcode, and the bike will not start until you enter the password. The Boar has a powerful 500W motor with a torque sensor to assist you in pedaling.

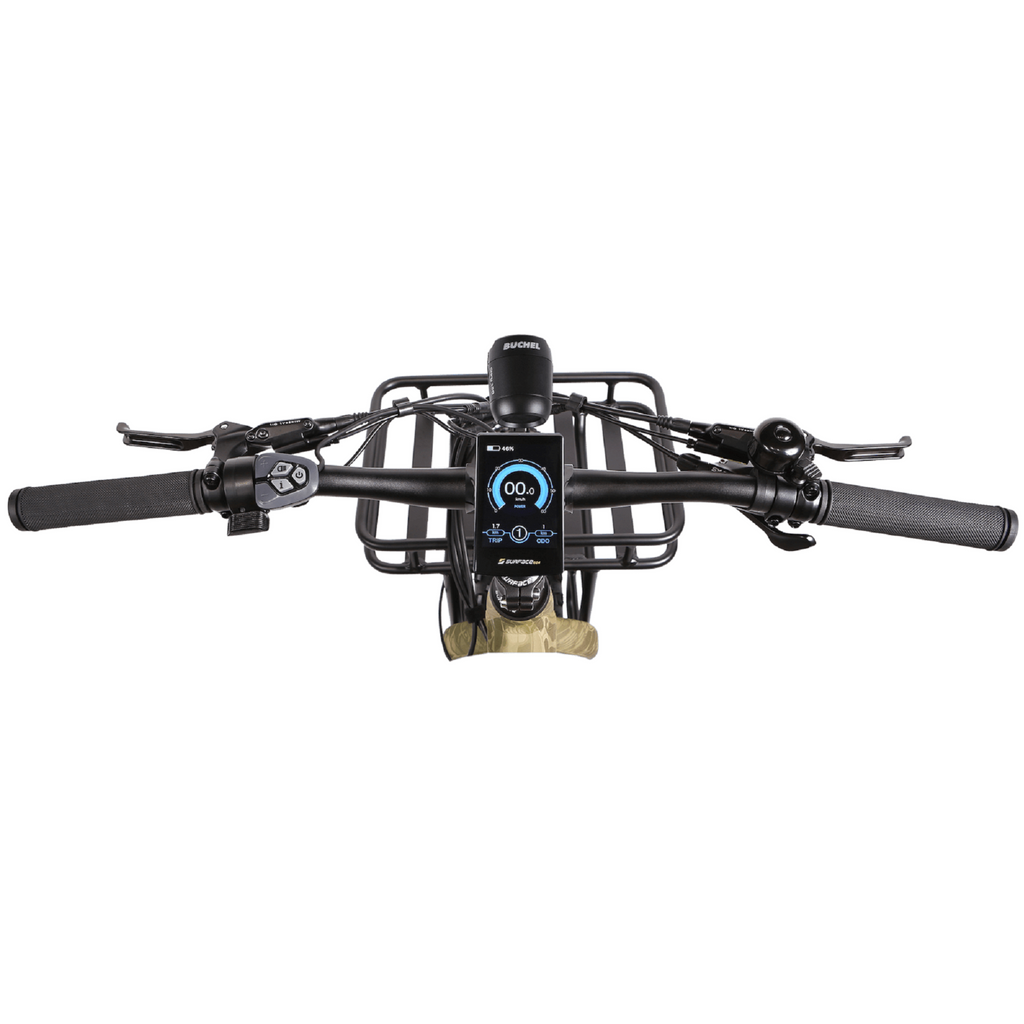

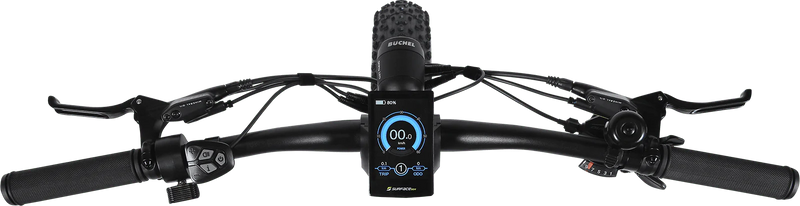

Colored LCD and USB Jack

The smart LCD screen fit in the middle of the handlebar displays all the vitals to help you keep up with the performance of your ebike. It comes with a USB jack so that you can listen to songs while riding. Also, it provides additional security, as you can set a passcode to lock the bike.

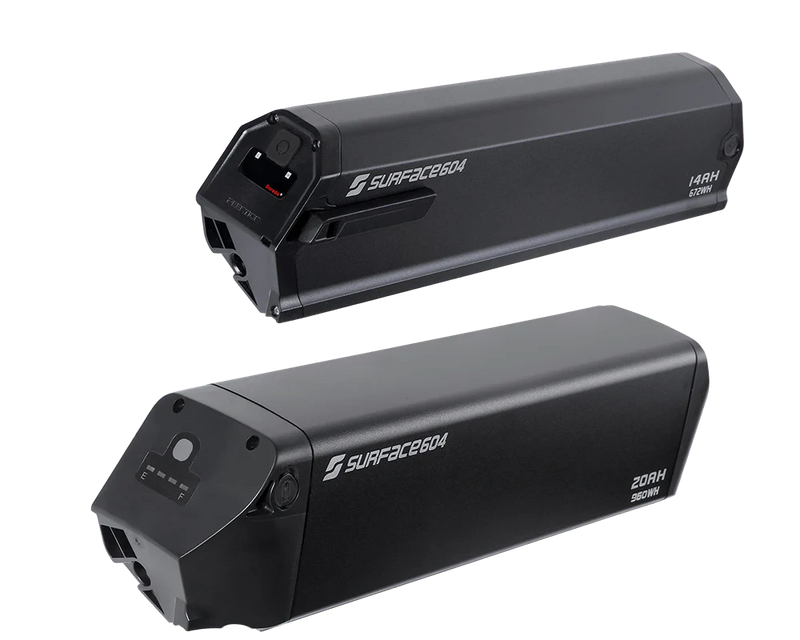

Long-Range Battery

The Samsung lithium-ion 48V battery is powerful and lasts long. It also has a battery capacity indicator on it that reflects the battery life.

Travel through the streets, mud, swamps, mountains, sand, water, and anything else you choose with the huge fat tires on the Surface 604 500W Boar Explorer.

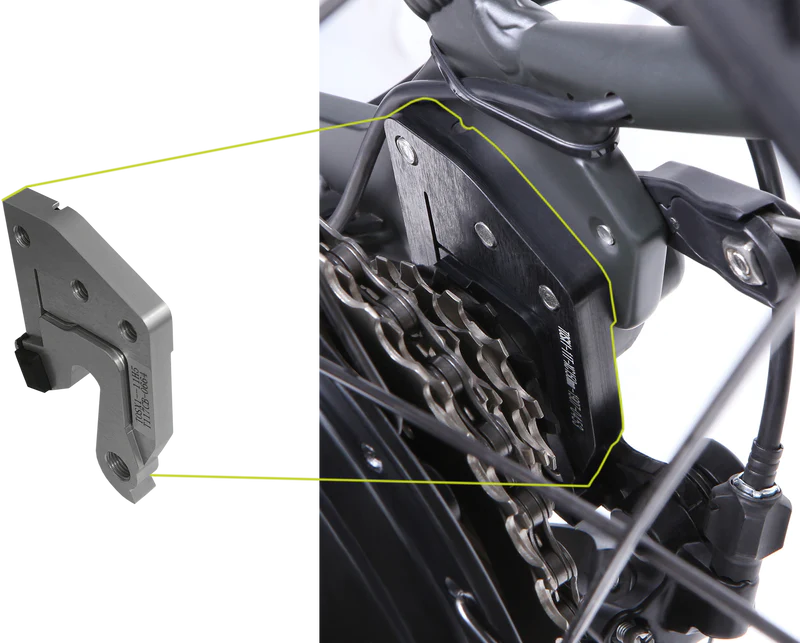

Pedal Assist System

The incredible torque sensor analyses how hard you are pedaling and accordingly matches the power with it. You can ride long distances without putting in less physical energy.

Specifications:

MODEL/SKU: EB-EXPLORER

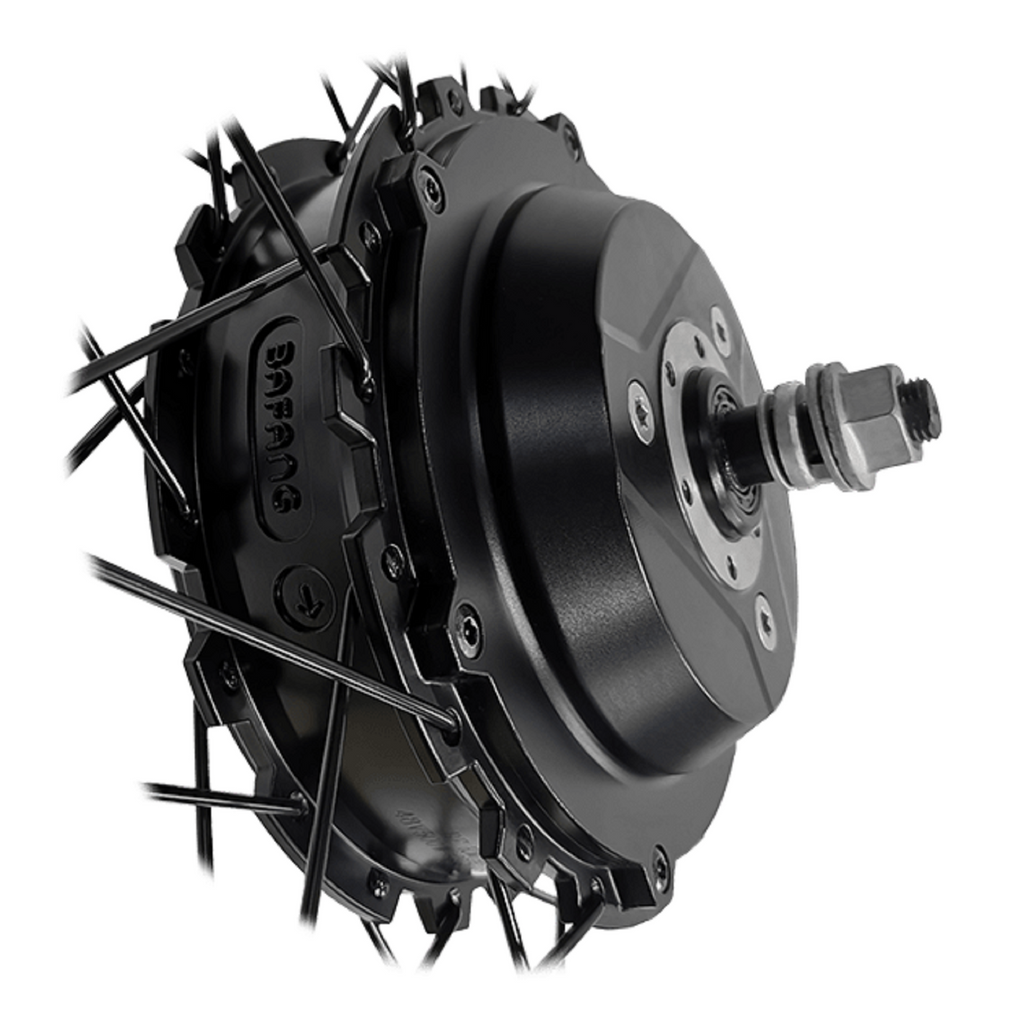

MOTOR: High torque 500W (Peaks At 750W) Fat Bike Specific Bafang geared hub motor

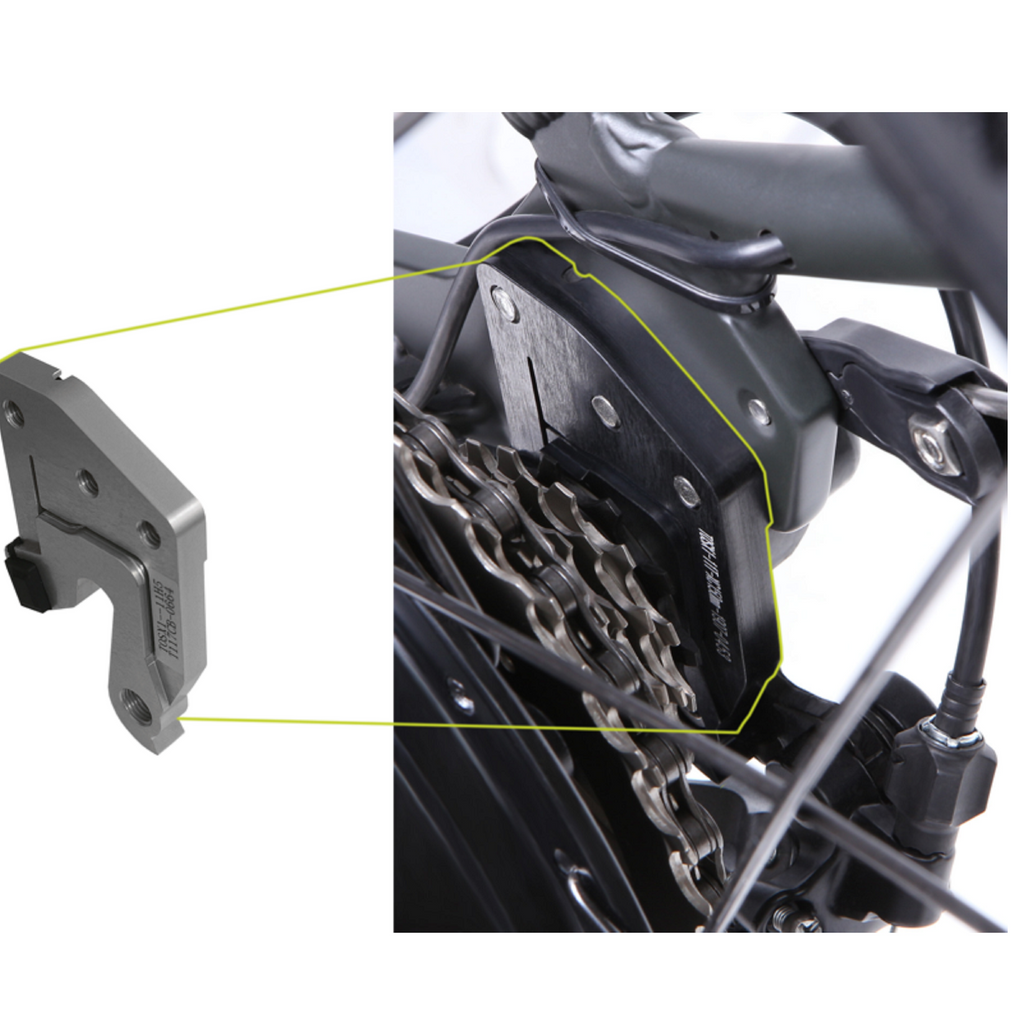

DRIVE MODE: Drop Out Torque sensing pedal assist with a throttle
THROTTLE: Thumb push activated throttle
CONTROLLER: SURFACE604 Designed 12 MOS 48V 500W 25Ah, Smart
BATTERY Included: 48V 14Ah / 672Wh Samsung lithium-ion 18X650mm cells
Upgrade option: 48V 20Ah / 960Wh Samsung lithium-ion 21X700mm cells
BATTERY CHARGE TIME: 3-4 Hours for a Full Charge from Empty
DISPLAY TYPE: SURFACE604 Color LCD Display with Micro USB Jack
DERAILLEUR: SRAM X5 9-speed
BRAKES: Tektro Auriga Hydraulic Disc Brakes
CRANK SET: Samox 36T front sprocket, 170mm crank arms
ROTORS: 180mm Front/Rear x 2.34mm Thick
FRAME MATERIAL: 6061 aluminum alloy
SEAT: SR Selle Royal Nebula
TIRES: Maxxis Colossus 27.5" x 4.50", EXO Protection, Dual Compound, 1415g (per tire)
RIMS: 27.5″ x 100mm single-wall aluminum with cutouts
FRONT HUBS: 150mm x 15mm thru-axle sealed bearing
NET WEIGHT (INCLUDING BATTERY): 50lbs
WEIGHT CAPACITY: 285lbs (130kg)


The Boar Explorer is a uniquely designed bike with a new style cockpit. The bike comes with two battery options that you can choose as per your riding needs. It originally comes with a Samsung lithium-ion 48W 14Ah battery that is powerful and lasts long. But you can upgrade it to a 48W 20AH 5000 mAH cell size battery if you prefer to ride the bike for long distances. The powerful 500W hub motor has a torque sensor and an on-demand throttle.

The Boar is the pickup truck for bikes because it delivers amazing performance even with heavy loads. The bike is equipped with Maxxis Colossus 27.5” x 4.50” fat tires that provide great balance on rocky and sloppy terrains. In addition, the 27.5” X 100mm rims provide great suspension and inertia when riding through rocky terrains.

The 6061 aluminum alloy frame is durable and rust-resistant. The frame can bear extreme weather conditions while still keeping its strength. The battery is kept in a case that is fixed to the frame. You can charge the battery while it is in the case or even take it out. The casing of the battery saves it from any external damages.

The smart LCD screen in the middle of the handlebar displays necessary riding information such as time, distance, battery percentage, etc. You can use the information to analyze your bike performance. The battery runs long, but you can plan your halts accordingly with how long it will run. In addition, the bike is equipped with rear and front lights to assist you in night riding.
